cable lugs

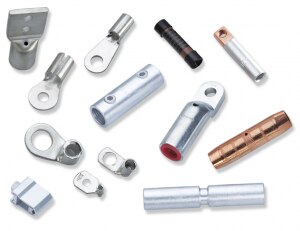

Cable Lugs are electrical termination components designed to connect cables and wires securely to electrical equipment, terminals, busbars, circuit breakers, transformers, motors, switchgear, and electrical panels. They provide a strong mechanical connection and reliable electrical conductivity. Cable lugs are manufactured in different materials, sizes, and designs to suit various cable termination requirements. Common options include Copper Cable Lugs, Aluminium Cable Lugs, Bi-Metallic Cable Lugs, Compression Cable Lugs, Ring Type Cable Lugs, Pin Type Cable Lugs, and Fork Type Cable Lugs. Key Features of Cable Lugs High electrical conductivity Strong and reliable cable termination Available in different cable sizes Copper and aluminium options Bi-metallic options for dissimilar metals Crimping and compression types available Durable and corrosion-resistant finishes Suitable for industrial and commercial electrical systems Types of Cable Lugs 1. Copper Cable Lugs Used for copper cable termination and applications requiring excellent conductivity. 2. Aluminium Cable Lugs Designed for terminating aluminium conductors in electrical installations. 3. Bi-Metallic Cable Lugs Used to connect aluminium cables to copper busbars or terminals while providing a suitable transition between dissimilar metals. 4. Compression Cable Lugs Installed using appropriate crimping or compression tools to create a secure electrical and mechanical connection. 5. Ring Type Cable Lugs Designed for bolted connections and commonly used in electrical panels and power systems. 6. Pin Type Cable Lugs Suitable for terminal blocks and electrical equipment requiring pin-style cable termination.

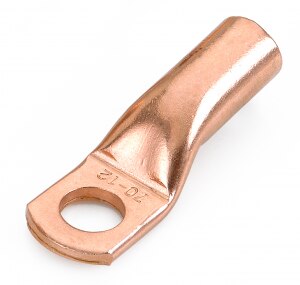

Copper Lugs are terminal connectors made primarily of copper — a material chosen for its excellent electrical conductivity and corrosion resistance. They are designed to provide a robust and low-resistance connection between electrical cables and devices like circuit breakers, transformers, panels, and grounding systems. Tubular Compression Cable Lugs , Cooper Lugs

Cable Lugs are electrical components used for safe and reliable termination of electrical cables. They provide a strong connection between cables and electrical panels, switchgear, busbars, circuit breakers, transformers, motors, generators, and other electrical equipment. Cable lugs are manufactured in different materials, sizes, and configurations to accommodate various cable types and electrical applications. Popular options include Copper Cable Lugs, Aluminium Cable Lugs, Tinned Copper Cable Lugs, Bimetallic Cable Lugs, Compression Cable Lugs, Ring Type Cable Lugs, and Pin Type Cable Lugs. What Are Cable Lugs? Cable Lug is a connector fitted to the end of an electrical cable. The conductor is inserted into the lug barrel and secured using an appropriate crimping or connection method. The lug's terminal end is then connected to an electrical terminal, stud, busbar, or equipment. The correct cable lug helps provide good electrical conductivity, mechanical strength, secure termination, and dependable connection performance.

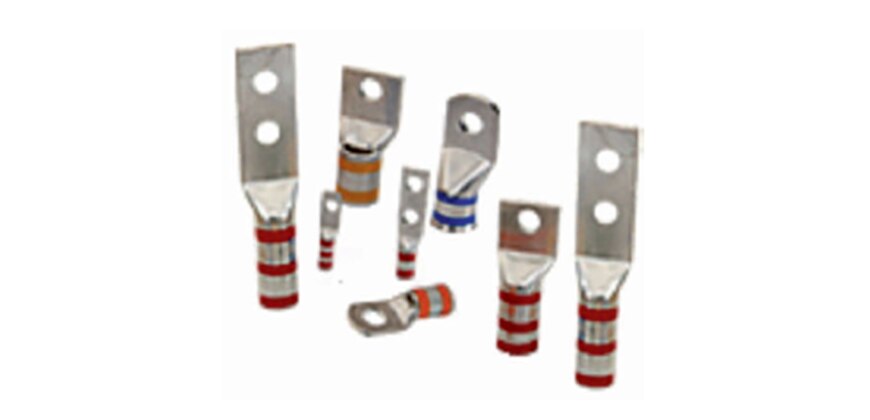

COPPER LUGS WITH LONG BARREL

Copper Lugs are high-conductivity electrical cable termination components used to connect copper cables securely to electrical equipment, busbars, terminals, circuit breakers, transformers, motors, switchgear, and electrical panels. They provide a reliable mechanical and electrical connection and are widely used in industrial, commercial, power distribution, and electrical installation applications. Copper lugs are available in different sizes and configurations to accommodate various cable cross-sections and terminal requirements. Types of Copper Lugs Copper Compression Lugs Copper Crimping Lugs Copper Ring Lugs Copper Pin Lugs Copper Fork/Spade Lugs Long Barrel Copper Lugs Short Barrel Copper Lugs Tinned Copper Lugs

Special Cable Terminal Ends Applications Electricity Boards: Generation, Distrubution etc. Electrical Industries: Control panels, Switch gears, Transformers, Circuit breakers Projects & Industrial for Electrical applications: Shipping, Automobile, Steel & Fertilizers, Chemical, Cement and Textile, Chemical Electronics, Mining Aeronautics, Satellite and Communications, etc. We have specially developed these terminals for supply to leading manufacturers of panel builders, distribution boards, transformers, railways, power stations, etc. Hex has all the expertise needed in developing & manufacturing special types of terminal ends as per customers’ design & specifications.

The Default Configuration of any Cable Lugs is considered to be : Without Inspection window, and Without Flared / Bell mouth entry. Please mention “I” after the product code for inspection hole and “B” for bell mouth / flared entry
